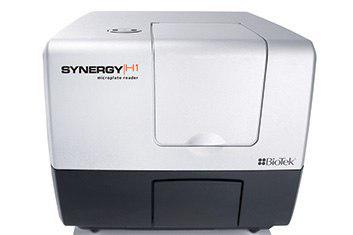

Synergy H1 Multi-Mode Reader

مشخصات دستگاه

Patented Hybrid OpticsSynergy™ H1 is a flexible monochromator-based multi-mode microplate reader that can be turned into a high-performance patented Hybrid system with the addition of a filter-based optical module. The monochromator optics uses a third generation quadruple grating design that allows working at any excitation or emission wavelength with a 1 nm step. This system supports top and bottom fluorescence intensity, UV-visible absorbance and high performance luminescence detection. It is the ideal system for all the standard microplate applications found in life science research laboratories.

The filter module is a completely independent add-on that includes its own light source, and a high performance dichroic-based wavelength selection system. With its very high optical efficiency, this module supports advanced detection modes such as Fluorescence Polarization, Time-Resolved Fluorescence & TR-FRET and filtered luminescence (e.g. BRET). A dual reagent injection system is available to automate inject/read assays such as ion channels assays or flash luminescence assays (e.g. luciferase or ATP assays).

To create the ideal physiological environment for live-cell assay, incubation to 45 °C and available gas controller monitors CO2 and O2 levels in Synergy H1.

US Federal Government customers: This product is available on GSA contract. Contact BioTek Customer Care with questions or submit a Quote Request Form to receive pricing and information on specific models (please note GSA Contract in the Comments field).

Hybrid Technology™ protected under U.S. Patent 8,218,141.

HTRF® and the HTRF logo are registered trademarks of Cisbio.

Take3 Trio Compatible

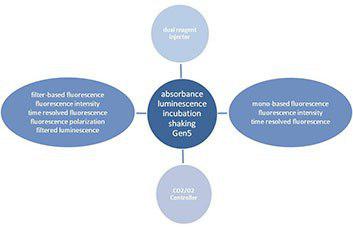

  • Patented Hybrid Technology™ combines flexible monochromator detection with high performance dichroic-based detection.

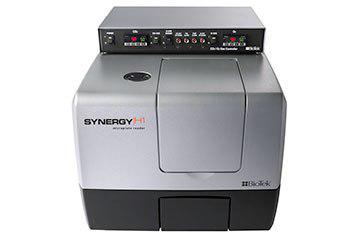

  • Compatible with the Gas Controller for control and monitoring of CO2 and O2.

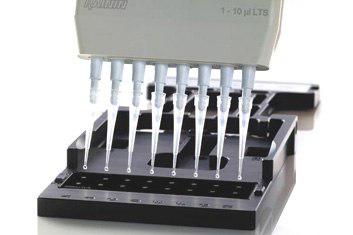

  • Compatible with Take3™ Micro-Volume Plate: samples down to 2 µL volume can be measured. Especially useful when working with precious samples, for fast and accurate DNA/RNA quantification at 260 nm
Take3 Micro-Volume Plate
  • Quadruple grating monochromator for maximum flexibility and ease of use.
  • Dichroic-based filter optics, for best performance and advanced detection technologies such as fluorescence polarization and time resolved fluorescence.
  • Comes with Gen5 software: reader control, advanced data analysis and flexible Excel export in one software package.
Part #
H1M
H1MD
H1F
H1FD
H1MF
H1MFD
Monochromator fluorescence
•
•


•
•
Monochromator absorbance
•
•


•
•
Full-light luminescence
•
•
•
•
•
•
Filter/dichroic fluorescence

•
•
•
•
Fluorescence polarization
•
•
•
•
Time resolved fluorescence
• *
• *
•
•
•
•
Filtered luminescence
•
•
•
•
Dual reagent dispenser
•

•

•
Temperature control to 45°C
•
•
•
•
•
•
Gen5 data analysis software
•
•
•
•
•
•
* Secondary mode

Gas Controller Compatible Configurations** H1MG H1MDG H1FG H1FDG H1FMG H1MFDG
** These configurations have the same features as the non- Gas Controller Compatible configurations in the chart above. Gas Controller sold separately.





General
Detection modes UV-Vis absorbance
Fluorescence intensity
Luminescence
Fluorescence polarization
Time-resolved fluorescence
Read methods Endpoint, kinetic, spectral scanning, well area scanning
Microplate types 6- to 384-well plates
Other labware supported Petri and cell culture dishes
Take3 Micro-Volume Plates
Temperature control 4-Zone™ incubation to 45 °C with Condensation Control™
+0.2 °C at 37 °C
Shaking Linear, orbital, double orbital
Software Gen5™ Data Analysis Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation BioStack and 3rd party automation compatible
BioSpa 8 Automated Incubator compatible
CO2 and O2 control (option) Range: 0 - 20% (CO2); 1 - 19% (O2)
Control Resolution: +0.1% (CO2 and O2)
Stability: +0.2% at 5% CO2; +0.2% at 1% O2
Models for both CO2 and O2 or CO2 only are available
Absorbance
Light source Xenon flash
Detector photodiode
Wavelength selection monochromator
Wavelength range 230 - 999 nm, 1 nm increments
Monochromator bandwidth 4 nm (230-285 nm), 8 nm (>285 nm)
Dynamic range 0 - 4.0 OD
Resolution 0.0001 OD
Pathlength correction yes
Monochromator wavelength accuracy ±2 nm
Monochromator wavelength repeatability ±0.2 nm
OD accuracy <1% at 2.0 OD
<3% at 3.0 OD
OD linearity <1% from 0 to 3.0 OD
OD repeatability <0.5% at 2.0 OD
Stray light 0.03% at 230 nm
Reading speed (kinetic) 96 wells: 11 seconds
384 wells: 22 seconds
Fluorescence Intensity
Light source Xenon flash
Detector PMT for monochromator system
PMT for filter system
Wavelength selection Quad monochromators (top/bottom)
Filters (top)
Wavelength range Monochromators: 250 - 700 nm (850 nm option)
Filters: 200 - 700 nm (850 nm option)
Monochromator bandwidth Fixed, 16 nm
Dynamic range 7 decades
Sensitivity Filters:
Fluorescein 0.25 pM (0.025 fmol/well, 384-well plate)

Quad Monochromator:
Fluorescein 2.5 pM (0.25 fmol/well, 384-well plate) - top
Fluorescein 4 pM (0.4 fmol/well, 384-well plate) - bottom
Reading speed (kinetic) 96 wells: 11 seconds
384 wells: 22 seconds
Luminescence
Wavelength range 300 - 700 nm
Dynamic range >6 decades
Sensitivity Monos: 20 amol ATP (flash)
Filters: 10 amol ATP (flash), 100 amol (glow)
Fluorescence Polarization
Light source Xenon flash
Detector PMT
Wavelength selection Filters
Wavelength range 280 - 700 nm (850 nm option)
Sensitivity 1.2 mP standard deviation at 1 nm fluorescein
Time-Resolved Fluorescence
Light source Xenon flash
Detector PMT
Wavelength selection Quad monochromators (secondary mode)
Filters (top)
Wavelength range Filters: 200 - 700 nm (850 nm option)
Sensitivity Filters: Europium 40 fM (4 amol/well, 384-well plate)
Monos: Europium 1200 fM (120 amol/well, 384-well plate)
Reagent Dispensers
Supported detection modes All modes
Number 2 syringe pumps
Supported labware 6- to 384-well microplates, Petri dishes
Dead volume 1.1 mL, 100 µL with back flush
Dispense volume 5 - 1000 µL in 1 µL increment
Dispense accuracy ±1 µL or 2%
Dispense precision <2% at 50-200 µL
Physical Characteristics
Power 130 Watts max.
Dimensions 15.4"W 18.6"D 12.9"H
(39.1 x 47.2 x 32.8 cm)
Weight 50 lbs (22.5 kg)
Regulatory
Regulatory CE and TUV marked. RoHS Compliant. Models for In Vitro Diagnostic use are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Standard (Included)

Gen5 Data Analysis Software

Gen5 Data Analysis Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some microplate readers come with a specific edition of Gen5, please check the microplate reader specifications.


Optional

BioSpa 8 Automated Incubator

BioSpa 8 Automated Incubator

BioSpa 8 is an automated incubator linking BioTek readers or imagers together with washers and dispensers for full workflow automation of up to 8 microplates. Temperature, CO2/O2 and humidity levels are controlled and monitored through the BioSpa software to maintain an ideal environment for cell cultures during all experimental stages.


BioStack Microplate Stacker

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.


Optional

BioSpa 8 Integration Kits

1410010 Alignment kit for Synergy H1

BioStack Integration Kits

7310045 BioStack Integration Kit for Synergy H1

Filter Accessories

7082073 Plug (Dummy filter) for Synergys and FLx800 accessory has picture
7082075 Retainer Clip for Synergys and FLx800 accessory has picture

Filter Cubes

8040501 Filter Cube: Blue (360/460) / Green (485/528) accessory has picture
8040502 Filter Cube: Green (485/528) / Red (530 / 590) accessory has picture
8040505 Filter Cube: HTRF® – TR-FRET accessory has picture
8040506 Filter Cube: LanthaScreen – TR-FRET accessory has picture
8040507 Filter Cube: Lance – TR-FRET accessory has picture
8040553 Filter Cube – Luminescence accessory has picture
8040555 TRF cube
8040561 Filter Cube: Green FP (485/528) accessory has picture
8040562 Filter Cube: Red FP (530 / 590) accessory has picture
8040563 Blue/UV FP filter set: 360/40 EX, 460/40 EM, 400 nm mirror, UV polarizers
8040564 Empty Filter Cube - Fluorescence Polarization Visible (excitation > 400nm)
8040565 Empty Filter Cube - Fluorescence Polarization UV (excitation between 300 and 400 nm)
8040566 Empty Filter Cube - non FP applications
8040574 BRET 1 cube, 460/40 and 540/25 nm
8040575 BRET 2 cube, 410/80 nm and 515/30 nm
8040576 Filter Block Asby 440 Blue/Green
8040578 Deep UV FP 284/340

Filters

7092202 274/5 nm Fluorescence Filter accessory has picture
7092146 276/10 nm Fluorescence Filter accessory has picture
7092145 276/5 nm Fluorescence Filter accessory has picture
7092148 280/10 nm Fluorescence Filter accessory has picture
7092147 280/5 nm Fluorescence Filter accessory has picture
7082259 284/10 nm Fluorescence Filter accessory has picture
7092149 284/5 nm Fluorescence Filter accessory has picture
7082248 310/20 nm Fluorescence Filter accessory has picture
7082250 320/20 nm Fluorescence Filter accessory has picture
7092205 325/50 nm Fluorescence Filter accessory has picture
7092150 330/20 nm Fluorescence Filter accessory has picture
7082263 330/80 nm Fluorescence Filter accessory has picture
7082254 340/11 nm Fluorescence Filter accessory has picture
7082230 340/30 nm Fluorescence Filter accessory has picture
7092151 355/20 nm Fluorescence Filter accessory has picture
7082220 360/40 nm Fluorescence Filter accessory has picture
7092152 380/11 nm Fluorescence Filter accessory has picture
7082228 380/20 nm Fluorescence Filter accessory has picture
7092153 395/25 nm Fluorescence Filter accessory has picture
7082242 400/10 nm Fluorescence Filter accessory has picture
7082205 400/30 nm Fluorescence Filter accessory has picture
7092154 405/20 nm Fluorescence Filter accessory has picture
7092155 410/10 nm Fluorescence Filter accessory has picture
7092200 410/80 nm Fluorescence Filter accessory has picture
7082270 420/27 nm Fluorescence Filter accessory has picture
7082206 420/50 nm Fluorescence Filter accessory has picture
7082227 440/30 nm Fluorescence Filter accessory has picture
7082207 440/40 nm Fluorescence Filter accessory has picture
7082208 450/50 nm Fluorescence Filter accessory has picture
7082222 460/40 nm Fluorescence Filter accessory has picture
7092157 470/40 nm Fluorescence Filter accessory has picture
7092158 475/20 nm Fluorescence Filter accessory has picture
7082221 485/20 nm Fluorescence Filter accessory has picture
7082209 485/40 nm Fluorescence Filter accessory has picture
7092160 490/10 nm Fluorescence Filter accessory has picture
7082268 495/10 nm Fluorescence Filter accessory has picture
7092162 500/20 nm Fluorescence Filter accessory has picture
7082256 500/27 nm Fluorescence Filter accessory has picture
7082218 508/20 nm Fluorescence Filter accessory has picture
7092201 515/30 nm Fluorescence Filter accessory has picture
7082246 516/20 nm Fluorescence Filter accessory has picture
7092163 520/10 nm Fluorescence Filter accessory has picture
7092164 520/20 nm Fluorescence Filter accessory has picture
7092211 525/40NM Pierce Renilla-Firefly Dual Luciferase Green Renilla
7082247 528/20 nm Fluorescence Filter accessory has picture
7082223 530/25 nm Fluorescence Filter accessory has picture
7092166 530/30 nm Fluorescence Filter accessory has picture
7092167 532/40 nm Fluorescence Filter accessory has picture
7092168 540/15 nm Fluorescence Filter accessory has picture
7082249 540/25 nm Fluorescence Filter accessory has picture
7082253 540/35 nm Fluorescence Filter accessory has picture
7092169 540/45 nm Fluorescence Filter accessory has picture
7082210 545/40 nm Fluorescence Filter accessory has picture
7092170 550/10 nm Fluorescence Filter accessory has picture
7092171 556/10 nm Fluorescence Filter accessory has picture
7092172 560/10 nm Fluorescence Filter accessory has picture
7082215 560/15 nm Fluorescence Filter accessory has picture
7082211 560/20 nm Fluorescence Filter accessory has picture
7082212 560/40 nm Fluorescence Filter accessory has picture
7082271 565/10 nm Fluorescence Filter
7092173 570/10 nm Fluorescence Filter accessory has picture
7082264 570/100 nm Fluorescence Filter accessory has picture
7092174 575/10 nm Fluorescence Filter accessory has picture
7082245 575/15 nm Fluorescence Filter accessory has picture
7092175 580/10 nm Fluorescence Filter accessory has picture
7082244 580/50 nm Fluorescence Filter accessory has picture
7092176 585/10 nm Fluorescence Filter accessory has picture
7092177 590/10 nm Fluorescence Filter accessory has picture
7082225 590/20 nm Fluorescence Filter accessory has picture
7082224 590/35 nm Fluorescence Filter accessory has picture
7092178 596/15 nm Fluorescence Filter accessory has picture
7082252 600/40 nm Fluorescence Filter accessory has picture
7092179 610/10 nm Fluorescence Filter accessory has picture
7092207 615/10NM Lanthascreen Europium donor emission
7082265 620/10 nm Fluorescence Filter accessory has picture
7082251 620/15 nm Fluorescence Filter accessory has picture
7082213 620/40 nm Fluorescence Filter accessory has picture
7092180 625/10 nm Fluorescence Filter accessory has picture
7082214 635/32 nm Fluorescence Filter accessory has picture
7092182 645/10 nm Fluorescence Filter accessory has picture
7082226 645/40 nm Fluorescence Filter accessory has picture
7092183 660/10 nm Fluorescence Filter accessory has picture
7092208 665/10NM Lanthascreen Europium acceptor emission
7092184 665/34 nm Fluorescence Filter accessory has picture
7082266 665/8 nm Fluorescence Filter accessory has picture
7092185 670/10 nm Fluorescence Filter accessory has picture
7092186 670/20 nm Fluorescence Filter accessory has picture
7092187 680/10 nm Fluorescence Filter accessory has picture
7092188 680/20 nm Fluorescence Filter accessory has picture
7082229 680/30 nm Fluorescence Filter accessory has picture
7092189 690/10 nm Fluorescence Filter accessory has picture
7092190 700/20 nm Fluorescence Filter accessory has picture
7092191 710/20 nm Fluorescence Filter accessory has picture
7092192 730/40 nm Fluorescence Filter accessory has picture
7092193 760/20 nm Fluorescence Filter accessory has picture
7092194 760/34 nm Fluorescence Filter accessory has picture
7092195 781/20 nm Fluorescence Filter accessory has picture
7092196 785/20 nm Fluorescence Filter accessory has picture
7092197 807/25 nm Fluorescence Filter accessory has picture
7092198 818/40 nm Fluorescence Filter accessory has picture
7092209 LP610NM Chromaglo red emitting luciferase
7092210 LP640NM Pierce Renilla-Firefly Dual Luciferase Red Firefly

Labware Holders

7302030 Cuvette Adapter accessory has picture

Mirrors

7132121 Half-size dichroic mirror, 50%, Ex 200-850 nm, Em 200-850 nm accessory has picture
7137400 Full-Size Dichroic Mirror, Ex. 320-390, Em. 410-800 accessory has picture
7137435 Full-Size Dichroic Mirror, Ex. 385-425, Em. 445-610 accessory has picture
7137455 Full-Size Dichroic Mirror, Ex. 400-450, Em. 460-710 accessory has picture
7137510 Full-Size Dichroic Mirror, Ex. 440-505, Em. 515-640 accessory has picture
7137525 Full-Size Dichroic Mirror, Ex. 475-520, Em. 530-670 accessory has picture
7137545 Full-Size Dichroic Mirror, Ex. 512-535, Em. 555-578 accessory has picture
7137550 Full-Size Dichroic Mirror, Ex. 415-540, Em. 560-850 accessory has picture
7137555 Full-Size Dichroic Mirror, Ex. 541-550, Em. 560-595 accessory has picture
7137570 Full-Size Dichroic Mirror, Ex. 515-565, Em. 575-735 accessory has picture
7137595 Full-Size Dichroic Mirror, Ex. 540-590, Em. 600-770 accessory has picture
7137660 Full-Size Dichroic Mirror, Ex. 580-655, Em. 665-850 accessory has picture
7138320 Half-Size Dichroic Mirror, Ex. 260-305, Em. 335-750 accessory has picture
7138365 Half-Size Dichroic Mirror, Ex. 290-350, Em. 380-800 accessory has picture
7138400 Half-Size Dichroic Mirror, Ex. 320-390, Em. 410-800 accessory has picture
7138435 Half-Size Dichroic Mirror, Ex. 385-425, Em. 445-610 accessory has picture
7138455 Half-Size Dichroic Mirror, Ex. 400-450, Em. 460-710 accessory has picture
7138510 Half-Size Dichroic Mirror, Ex. 440-505, Em. 515-640 accessory has picture
7138525 Half-Size Dichroic Mirror, Ex. 475-520, Em. 530-670 accessory has picture
7138545 Half-Size Dichroic Mirror, Ex. 512-535, Em. 555-578 accessory has picture
7138550 Half-Size Dichroic Mirror, Ex. 415-540, Em. 560-850 accessory has picture
7138555 Half-Size Dichroic Mirror, Ex. 541-550, Em. 560-595 accessory has picture
7138570 Half-Size Dichroic Mirror, Ex. 515-565, Em. 575-735 accessory has picture
7138595 Half-Size Dichroic Mirror, Ex. 540-590, Em. 600-770 accessory has picture
7138660 Half-Size Dichroic Mirror, Ex. 580-655, Em. 665-850 accessory has picture

Miscellaneous

1210007 Gas Controller for CO2 control. Includes CO2 flow meter & tubing set (p/n 1213032) accessory has picture
1210008 Gas Controller for CO2 and O2 control. Includes CO2 and N2 flow meters & tubing set (p/n 1213033 and p/n 1213032). accessory has picture
1210011 Calibration Kit for CO2 Controller
7210515 3-Instrument Rack – for third party robotic system integration accessory has picture
7270512 BioCell Adapter Plate Assembly accessory has picture
7272051 BioCell 1 cm Quartz Vessel accessory has picture

Product Qualification Packages

8040528 Synergy H1 Qualification Package

Reagent Injector Assembly

8040003S Dual Reagent Injector Module accessory has picture

Reagent Injector Options

1320514 Angled tip injector head accessory has picture

Software Options

GEN5SECURE Gen5 Secure accessory has picture
GEN5IVD Gen5 IVD accessory has picture
GENRC Gen5 Reader Control (RC) accessory has picture

Take3 Micro-Volume Plate

TAKE3 Take3 Micro-Volume Plate accessory has picture
Take3TRIO Take3 Trio Micro-Volume Plate accessory has picture

Test Plates & Reagents

98155 Sodium Fluorescein Powder (1 mg vial) accessory has picture
7092092 Fluorescence Test Plate accessory has picture
7120779 BioTek QC Check Solution #1 - Yellow (25 mL) accessory has picture
7120782 BioTek QC Check Solution #1 - Yellow (125 mL) accessory has picture
7260522E Absorbance Test Plate accessory has picture
7260551 340 nm Absorbance Test Plate
8030015 Luminescence Test Plate accessory has picture

ONE COMPANY, ONE SOLUTION Since 2000

E-Mail: ceo@farayand.com
تلفن:72- 88334462 021
دورنگار: 88002310 021
آدرس: تهران، ميدان فاطمی، میدان گلها، خيابان كاج جنوبي،كوچه هشتم، پلاک 27
کد پستی: 1413874875
صندوق پستی: 14155/4415

شبکه های اجتماعی

محصولات اخیر

  • Microplate Reader
  • Autoclave
  • santrifuj
  • Microplate Washer
  • Incubators
  • PCR

خبرنامه

Scroll to Top
