فلورسانس ریدر

مشخصات دستگاه

این دستگاه جهت خوانش فلورسانس و لومینسانس به کار می رود. با استفاده از این دستگاه می توان End point, kinetic,well are scanning را انجام داد. هم چنین این دستگاه با استفاده از نرم افزار Gen5 نیز کنترل می شود و می توان با آن برنامه لازم را اجرا کرد. این دستگاه کار انکوباسیون و هم چنین شیکینگ را انجام می دهد.

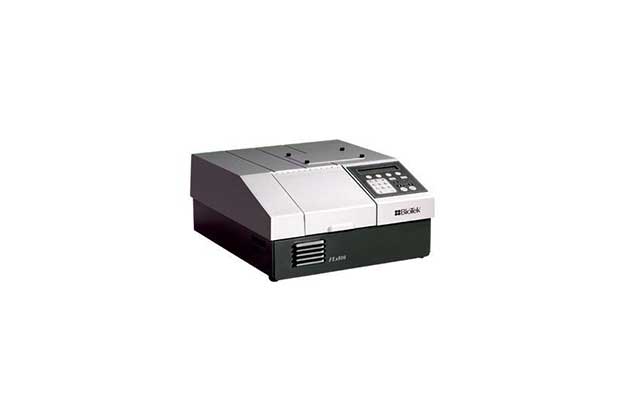

The FLx800™ Multi-Detection Microplate Reader combines excellent specifications and performance with convenience and ease of use. This design incorporates powerful performance at a price much lower than traditional fluorescence-luminescence microplate readers. The FLx800 line includes several models with options that meet the specific needs of research and OEM users. Top and bottom reading are available to read from 6-well to 384-well microplates. An optional external dispenser module allows you to run applications such as ion channel assays and flash luminescence assays (e.g. luciferase, ATP).

The FLx800 has on-board data reduction software or can be fully computer controllable via BioTek's powerful Gen5™ Data Analysis Software.

US Federal Government customers: This product is available on GSA contract. Contact BioTek Customer Care with questions or submit a Quote Request Form to receive pricing and information on specific models (please note GSA Contract in the Comments field).

  • Custom-mapped fiber optics for optimal signal transfer
  • Selectable, automated top- or bottom-probe reading for best sensitivity
  • Typical fluorescence sensitivity to 5 pM sodium fluorescein
  • Glow luminescence reading with top detection for best sensitivity
  • Incubation to 50ºC for temperature-sensitive assays
  • Reads 6- to 384-well plates
  • Convenient front panel accessory access makes changing filters simple
  • Powerful on-board data reduction software
  • Computer control via Gen5™ Software

The FLx800's convenient front panel access makes changing filters and lamps and probe positioning quick and easy.


The FLx800's convenient front panel access makes changing filters and lamps and probe positioning quick and easy.
Part #
FLX800T
FLX800TB
FLX800TBI
FLX800TBID
Fluorescence
•
•
•
•
Luminescence
•
•
•
•
Top probe only
•

Top/bottom  probes
•
•
•
Incubation
•
•
Shaking
•
•
Injector
•
Software
Gen5™
Gen5™
Gen5™
Gen5™
*Extended Range PMT available - see price list.



General
Detection modes Fluorescence intensity
Luminescence
Read methods Endpoint, kinetic, well area scanning (under computer control)
Microplate types 6- to 384-well plates
Temperature control 4 °C above ambient to 50 °C (I models)
Shaking Linear (I models)
Software Gen5™ Data Analysis Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Fluorescence Intensity
Light source Tungsten halogen
Detector PMT
Wavelength selection Filters
Wavelength range 300 - 700 nm (850 nm option)
Dynamic range 5 decades
Sensitivity Fluorescein 5 pM (1 fmol/well 96-well plate)
Luminescence
Wavelength range 300 - 700 nm
Dynamic range 5 decades
Sensitivity 100 amol ATP (flash)
Reagent Dispensers
Supported detection modes Fluorescence
Number 1 syringe pump
Dead volume 1.1 mL, 100 µL
Dispense volume 5 - 1000 µL in 1 nm increments
Physical Characteristics
Power 100 - 240 Volts AC. 50/60 Hz.
Dimensions 15"W x 16"D x 9"H
(38.1 x 40.64 x 22.89 cm)
Weight 30 lbs (13.6 kg)
Regulatory
Regulatory CE and TUV marked. ROHS compliant. In Vitro Diagnostic use models are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Standard (Included)

Gen5 Data Analysis Software

Gen5 Data Analysis Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some microplate readers come with a specific edition of Gen5, please check the microplate reader specifications.


Standard (Included)

Operators Manual

MANUAL Operator's manuals can be obtained via the Customer Resource Center

Optional

Bottles & Tubing

7112186 3 feet (1 meter) tubing for Synergy dispenser box

Cables

71072 Parallel Printer Cable (25-pin male to 36-pin male) accessory has picture
75053 Serial Cable, Null Modem (9-pin female to 25-pin female) accessory has picture
75135 Parallel to USB Adapter accessory has picture

Filter Accessories

7080541 Empty Filter Wheel for Synergys and FLx800 accessory has picture
7082073 Plug (Dummy filter) for Synergys and FLx800 accessory has picture
7082075 Retainer Clip for Synergys and FLx800 accessory has picture

Filters

7082248 310/20 nm Fluorescence Filter accessory has picture
7082250 320/20 nm Fluorescence Filter accessory has picture
7092150 330/20 nm Fluorescence Filter accessory has picture
7082263 330/80 nm Fluorescence Filter accessory has picture
7082254 340/11 nm Fluorescence Filter accessory has picture
7082230 340/30 nm Fluorescence Filter accessory has picture
7092151 355/20 nm Fluorescence Filter accessory has picture
7082220 360/40 nm Fluorescence Filter accessory has picture
7092152 380/11 nm Fluorescence Filter accessory has picture
7082228 380/20 nm Fluorescence Filter accessory has picture
7092153 395/25 nm Fluorescence Filter accessory has picture
7082242 400/10 nm Fluorescence Filter accessory has picture
7082205 400/30 nm Fluorescence Filter accessory has picture
7092154 405/20 nm Fluorescence Filter accessory has picture
7092155 410/10 nm Fluorescence Filter accessory has picture
7092200 410/80 nm Fluorescence Filter accessory has picture
7082270 420/27 nm Fluorescence Filter accessory has picture
7082206 420/50 nm Fluorescence Filter accessory has picture
7082227 440/30 nm Fluorescence Filter accessory has picture
7082207 440/40 nm Fluorescence Filter accessory has picture
7082208 450/50 nm Fluorescence Filter accessory has picture
7082222 460/40 nm Fluorescence Filter accessory has picture
7092157 470/40 nm Fluorescence Filter accessory has picture
7092158 475/20 nm Fluorescence Filter accessory has picture
7092159 485/10 nm Fluorescence Filter accessory has picture
7082221 485/20 nm Fluorescence Filter accessory has picture
7082209 485/40 nm Fluorescence Filter accessory has picture
7092160 490/10 nm Fluorescence Filter accessory has picture
7082268 495/10 nm Fluorescence Filter accessory has picture
7092162 500/20 nm Fluorescence Filter accessory has picture
7082256 500/27 nm Fluorescence Filter accessory has picture
7082218 508/20 nm Fluorescence Filter accessory has picture
7092201 515/30 nm Fluorescence Filter accessory has picture
7082246 516/20 nm Fluorescence Filter accessory has picture
7092163 520/10 nm Fluorescence Filter accessory has picture
7092211 525/40NM Pierce Renilla-Firefly Dual Luciferase Green Renilla
7082247 528/20 nm Fluorescence Filter accessory has picture
7082223 530/25 nm Fluorescence Filter accessory has picture
7092166 530/30 nm Fluorescence Filter accessory has picture
7092167 532/40 nm Fluorescence Filter accessory has picture
7092168 540/15 nm Fluorescence Filter accessory has picture
7082249 540/25 nm Fluorescence Filter accessory has picture
7082253 540/35 nm Fluorescence Filter accessory has picture
7092169 540/45 nm Fluorescence Filter accessory has picture
7082210 545/40 nm Fluorescence Filter accessory has picture
7092170 550/10 nm Fluorescence Filter accessory has picture
7092171 556/10 nm Fluorescence Filter accessory has picture
7092172 560/10 nm Fluorescence Filter accessory has picture
7082215 560/15 nm Fluorescence Filter accessory has picture
7082211 560/20 nm Fluorescence Filter accessory has picture
7082212 560/40 nm Fluorescence Filter accessory has picture
7082271 565/10 nm Fluorescence Filter
7092173 570/10 nm Fluorescence Filter accessory has picture
7082264 570/100 nm Fluorescence Filter accessory has picture
7092174 575/10 nm Fluorescence Filter accessory has picture
7082245 575/15 nm Fluorescence Filter accessory has picture
7092175 580/10 nm Fluorescence Filter accessory has picture
7082244 580/50 nm Fluorescence Filter accessory has picture
7092176 585/10 nm Fluorescence Filter accessory has picture
7092177 590/10 nm Fluorescence Filter accessory has picture
7082225 590/20 nm Fluorescence Filter accessory has picture
7082224 590/35 nm Fluorescence Filter accessory has picture
7092178 596/15 nm Fluorescence Filter accessory has picture
7082252 600/40 nm Fluorescence Filter accessory has picture
7092179 610/10 nm Fluorescence Filter accessory has picture
7092207 615/10NM Lanthascreen Europium donor emission
7082265 620/10 nm Fluorescence Filter accessory has picture
7082251 620/15 nm Fluorescence Filter accessory has picture
7082213 620/40 nm Fluorescence Filter accessory has picture
7092180 625/10 nm Fluorescence Filter accessory has picture
7092181 635/20 nm Fluorescence Filter accessory has picture
7082214 635/32 nm Fluorescence Filter accessory has picture
7092182 645/10 nm Fluorescence Filter accessory has picture
7082257 645/15 nm Fluorescence Filter accessory has picture
7082226 645/40 nm Fluorescence Filter accessory has picture
7092183 660/10 nm Fluorescence Filter accessory has picture
7092208 665/10NM Lanthascreen Europium acceptor emission
7092184 665/34 nm Fluorescence Filter accessory has picture
7082266 665/8 nm Fluorescence Filter accessory has picture
7092185 670/10 nm Fluorescence Filter accessory has picture
7092186 670/20 nm Fluorescence Filter accessory has picture
7092187 680/10 nm Fluorescence Filter accessory has picture
7092188 680/20 nm Fluorescence Filter accessory has picture
7082229 680/30 nm Fluorescence Filter accessory has picture
7092189 690/10 nm Fluorescence Filter accessory has picture
7092190 700/20 nm Fluorescence Filter accessory has picture
7092191 710/20 nm Fluorescence Filter accessory has picture
7092192 730/40 nm Fluorescence Filter accessory has picture
7092193 760/20 nm Fluorescence Filter accessory has picture
7092194 760/34 nm Fluorescence Filter accessory has picture
7092195 781/20 nm Fluorescence Filter accessory has picture
7092196 785/20 nm Fluorescence Filter accessory has picture
7092197 807/25 nm Fluorescence Filter accessory has picture
7092198 818/40 nm Fluorescence Filter accessory has picture
7092209 LP610NM Chromaglo red emitting luciferase
7092210 LP640NM Pierce Renilla-Firefly Dual Luciferase Red Firefly

Product Qualification Packages

7080532 FLx800 Qualification Package - IQ/OQ/PQ

Test Plates & Reagents

98155 Sodium Fluorescein Powder (1 mg vial) accessory has picture
7092092 Fluorescence Test Plate accessory has picture
